Rotation Head
Pneumatic rotary equipment used for rock drilling with Down the Hole Drifter (DTH). Can be attached to MW-5000 Drilling Cart or similar.
Our Models
MW-80A:
Technical Data | |
|---|---|
Air Consumption | 300 PCM / CFM |
Working Pressure | 7 bar / 100 psi |
Hole size | 2.1/2″ – 5.1/2 |
Rotation | 0 – 70rpm |
Torque @ 6bar (87 PSI) | 1600 Nm |
Torque @ 8bar (116 PSI) | 3900 Nm |
Weight | 136 kg (299 lb) |

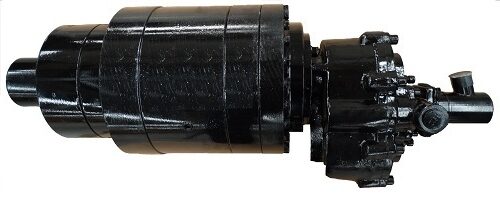

MW-80A-HP:
Technical Informations | |
|---|---|
Air Consumption | 410 PCM / CFM (11,5 m3 / min) |
Working Pressure | 350 PSI / 25 BAR |
Hole Size | 2.1/2″ – 6″ |
Weight | 283 kg (624 lb) |
