An Air Track Drill, ideal for Quarries, Mining and Civil Construction, where durability and reliability are required. This Drill Rig, like the others from Wolf, is designed for high productivity, versatility and low maintenance. It is possible to work with a top drill (drifter) or a bottom hammer (DTH).
Advantages:
- Perfect for development purposes
- Low Maintenance Cost
- Low Investment Cost
Top Hammer Air Track Drill for Construction, Mining and Quarrying
Technical Data | |
|---|---|
Air Consumption: 750 PCM | |
Working Pressure: 100 PSI / 7 bar | |
Top Hammers Available: Mw-126LS/131LS/140LS | |
Optional Cleaning System: Air or Water |
OPTIONAL PARTS | ||
|---|---|---|
PARTS | MW 5000 | MW 5000E |
Pneumatic Grinder Wheel | OPTIONAL | OPTIONAL |
Bits Grinder (Button) | OPTIONAL | OPTIONAL |
Water Mist Kit – MW 121 / 126 / 131LS (no tank included) – Incorporated Chassis | OPTIONAL | OPTIONAL |
Water Mist Kit – para MW 120 / 140LS (no tank included) – Incorporated Chassis | OPTIONAL | OPTIONAL |
Water Tank (100 lts) | OPTIONAL | OPTIONAL |
Dust Collector (Pneumatic) | OPTIONAL | OPTIONAL |
HourMeter | OPTIONAL | OPTIONAL |
Hydraulic Centralizer | OPTIONAL | OPTIONAL |
Feed Motor Drifter’s Break | OPTIONAL | OPTIONAL |
Oil Collector at the Boom | OPTIONAL | OPTIONAL |
Pressure Relief Valve (25 bar to 7 bar) | OPTIONAL | OPTIONAL |
Gear Motor, instead of vane (motor that works with hydraulic pump) | OPTIONAL | OPTIONAL |
Platform (side) | OPTIONAL | OPTIONAL |
Inclinometer (manual) | OPTIONAL | OPTIONAL |
Truck Frame Protector | OPTIONAL | OPTIONAL |
Vane Motor Protection | OPTIONAL | OPTIONAL |
Undercarriage Protection | OPTIONAL | OPTIONAL |
Rod Support – R32, T38 and (T45 just for MW-140) | OPTIONAL | OPTIONAL |
Truck Frame Rod Support | OPTIONAL | OPTIONAL |
Surface Drifter and Rotation Heads MW available:
Top Hammers | Rotation Head | |||||
|---|---|---|---|---|---|---|
Model | MW 120 | MW 126 | MW 131 | MW 140 | MW 80 | MW80HP
|
Image |  |  | |  |  |  |
Air Consumption | 600-750 CFM –
18M³/min
| 700 CFM – 19
m³/min
| 750 CFM – 21
m³/min
| 750 CFM – 21
m³/min
| 300 CFM – 8,5
m³/min | 410 CFM – 11,5
m³/min |
Working Pressure | 7 bar – 100 psi | 7 bar – 100 psi | 7 bar – 100 psi | 7 bar – 100 psi | 7 bar – 100 psi | 25 bar – 350 psi |
Impact Power | 8,5 kW | 10 kW | 11,1 kW | 10 kW | – | – |
Impact Frequency | 2350 imp/min | 2600 imp/min | 2350 imp/min | 2350 imp/min | – | – |
Rotation | Independent | Independent | Independent | Independent | Independent | Independent |
Hole Size | 2” – 3.1/2” | 2” – 3.1/2” | 2” – 3.1/2” | 2” – 3.1/2” | 2.1/2”-5” | 2.1/2”-6”
|
Weight | 185kg | 190kg | 190kg | 185kg | 120kg | 283kg |
Main Application | Geotechnics and Civil Construction
| Geotechnics and Civil Construction | Geotechnics and Civil Construction
| Geotechnics and Civil Construction | Geotechnics and Civil Construction | Geotechnics and Civil Construction |

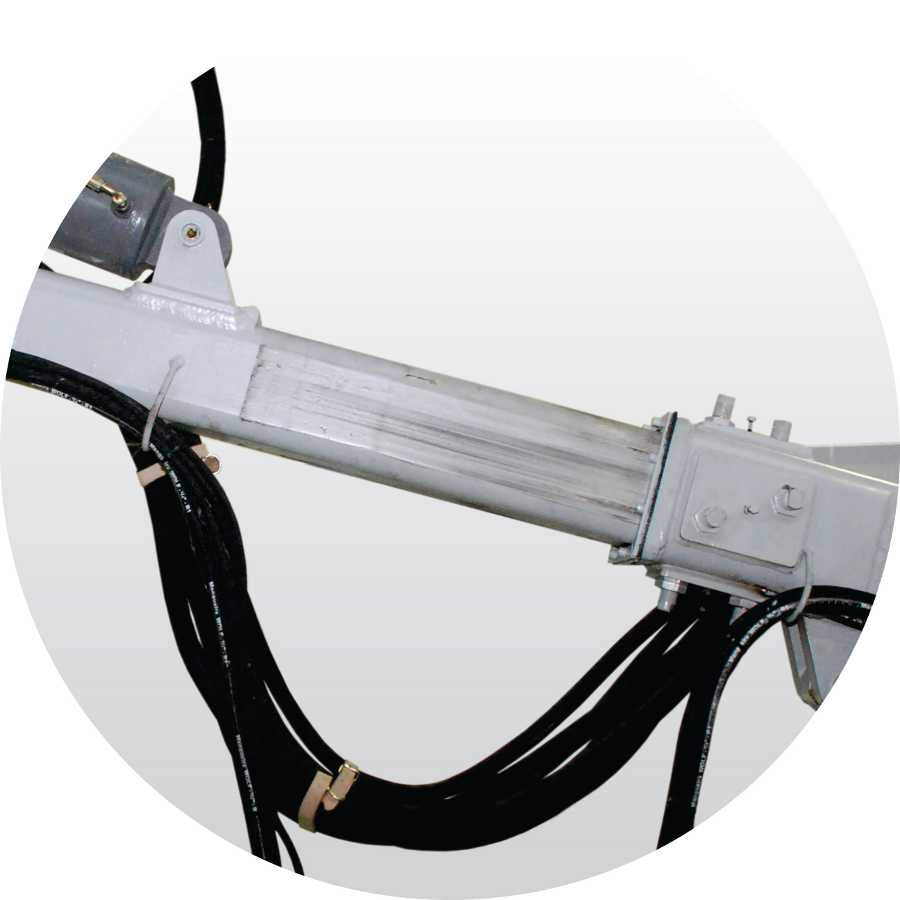

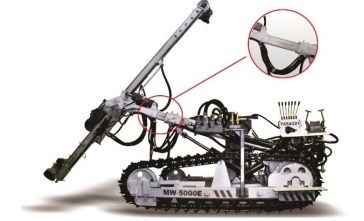

The MW 5000E features Extensive Boom with an extra 1.5m reach capability

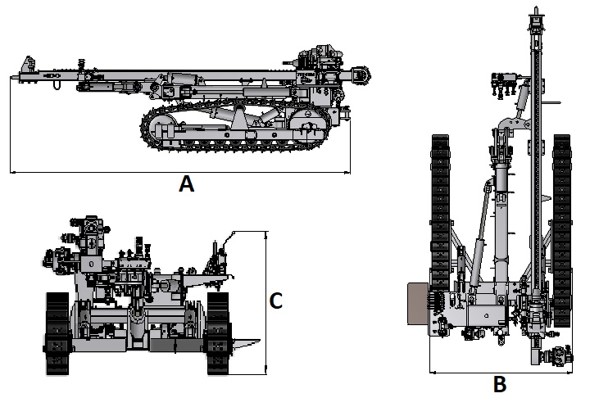

Transport Dimensions | |
|---|---|
Weight | 5300kg |
Width | 2224mm |
Length | 5814mm |
Height | 1600mm |
