This hydraulic drilling attachment has higher productivity than a pneumatic drill being able to replace a dedicated hydraulic crawler drill. Diesel consumption is greatly reduced compared to a pneumatic set (trailer + compressor). The operator can operate the drill from outside the cabin, using the radio control, not exposing himself to risk situations. In a matter of minutes, with a single piece of equipment, three functions are achieved: drilling, demolition and excavation.
Advantages:
- Multiple drilling positions
- Low Investment Cost
- High Productivity
- Higher Reach
- Operational Confort
Hydraulic Drilling Attachment for Excavators for Quarries, Mines and Construction
Technical Data |
|---|
Fully hydraulic and needs a single operator
|
Hole Size: 2.1/2″ to 4″ (64 à 102 mm)
|
Digital panel inside the cabin with interactive display for monitoring and Depth Gauge (as an optional item)
|
Rod Changer, Rod Greaser, Hydraulic Centralizer and Hose Reel
|
Cleaning System with Water Injection or Dust Collector (as an optional item)
|
An air compressor 250cfm @100 psi is required along with the excavator for proper operation
|
Excavator Requirement : Plumbed with Auxiliary Kit 240-250 l/min @150 bar (64-66 GPM @2100 psi) and Air Compressor 250 CFM @ 100 psi (will depend on drilling diameter and depth)
|
AVAILABLE COMPONENTS | |
|---|---|
Water Cleaning System | Standard |
Anti Jamming | Standard |
Dust Collector (Primary and Secondary) | Opcional |
Emergency Button (Installed on Boom) | Optional |
Installation / Adaptation of the 4th Excavator Function | Optional |
Installation of Retention Valve for Excavator Boom Cylinders | Optional |
Installation of Chassis Swing Brake for Excavator | Optional |
Nitrogen Charger | Optional |
Compressor Base | Optional |
Lower Casing “Boonzinho” for Hose and Control Protection | Optional |
Depth Meter | Optional |
Protective Grid (CE standard) for Engine and Feed Reducer | Optional |
Surface Drifter W 19:
Technical Data | |
|---|---|
Working Pressure | 120-140 bar (2.030 PSI) |
Impact Power | 19 Kw (26 hp) |
Impact Frequency | 2.600 bpm |
Weight | 237 kg |
Rotation | 0 – 150 rpm |
Rotation Torque | 750 Nm (533 lbf/ft) |
Thread Type | T38 / T45 |
Hole Size | 2.1/2″ – 4″ |
Rod Length | 3,66m (12”) |

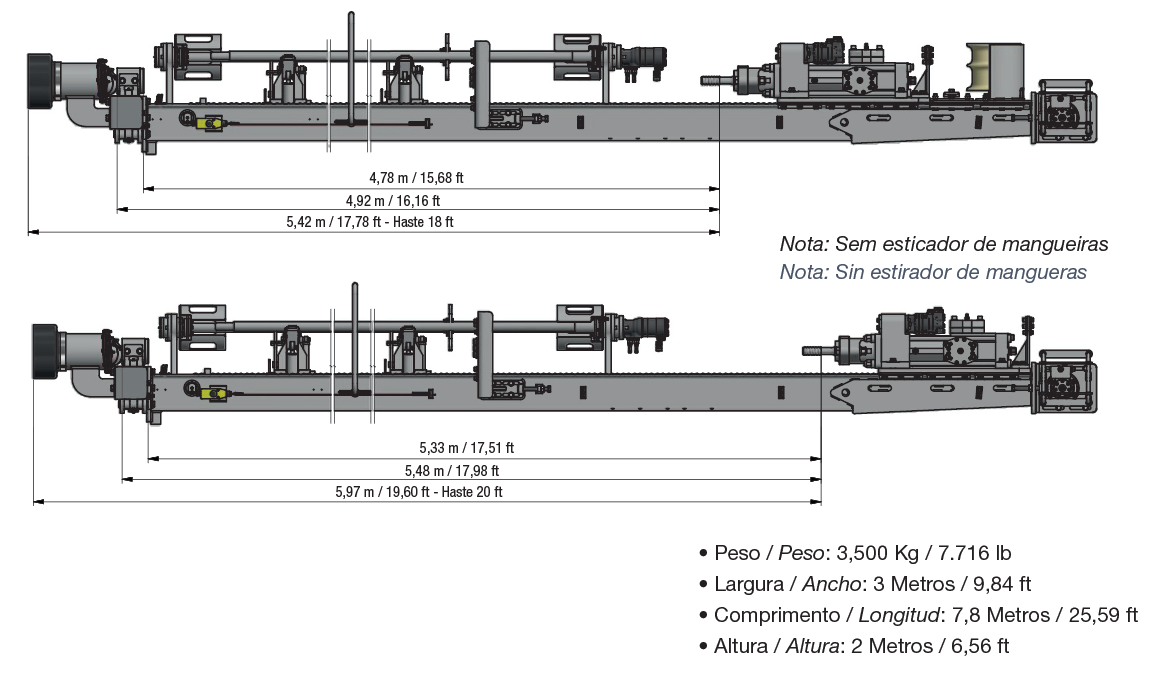

Transport Dimensions | |
|---|---|
Weight | 3.500kg |
Width | 3.000mm |
Length | 7.800mm |
Height | 2.000mm |
