Introducing the New FOX 12-30: Power, Precision, and Innovation in a Single Machine!
The FOX 12-30 ULTRA arrives on the market as the latest benchmark in performance, technology, and reliability. Designed to meet the demands of larger drilling diameters, it combines structural robustness with advanced features that ensure maximum efficiency and productivity in any operation.
With a smart design, simplified operation, and features optimized for safety and economy, the FOX 12-30 ULTRA represents the latest in its category.
The new FOX 12-30 ULTRA features an even more robust W 25 hammer, capable of operating with diameters up to 5″ (127 mm).
Featuring a reverse percussion system and the exclusive Dampening System, the W25 hammer reduces excessive vibrations and impacts. Whatever the challenge, it delivers high-level performance with the precision you need and the durability your business demands.
Advantages:
- Operational Confort
- High Production
- Higher Reach
- Eco Mode
- Low Maintenance Cost
- Operational and Maintenance Simplicity
Top Hammer Hydraulic Crawler Drill with Cabin for Quarries, Mines and Construction
Technical Data | ||
|---|---|---|
Diesel Engine | Traction | |
Manufacturer: Cummins | Maximum speed: 3.8 km/h | |
Model 6cc 6CTA 8.3lt – 234HP | Pulling force: 56.596 N | |
Cooler: Water | Ascent ramp: 36% | |
Diesel Tank Capacity 300 lt | Truck Oscilation: +/- 10º | |
Rod Changer | Compressor Unit | |
Type: Carousel | Type: Screw | |
Capacity: 6+1 rod | Flow: 300 – 347 CFM / PCM | |
Rod greaser: 3.66 m (12’) | Pressure: 105 PSI (7 – 9 bar) | |
Boom | Dust Collector (Standard) | |
Length: 7 meters | Primary collector: Cyclone type / Secondary: 4 filters | |
Length Usable: 4,5m and 8″wide | Suction capacity: 35m³/min (882 CFM) | |
Hydraulic Chain Advance | Cleaning System (optional) | |
Planetary Reducer System | Cleaning With Water | |
Water tank capacity: 150 liters (33 gal) | ||
Note: The FOX series of equipment is equipped with a Dust Collector and/or Water Cleaning system to meet the requirements of the Regulatory Norms for Mining NRM, which deals with Decree-Law No. 227 of 02/28/1967. NRM 09 in detail – Items 9.1.3.1 and 9.1.3.2 | ||
Available Items | |
|---|---|
Dust Collector (Primary and Secondary) | Standard |
Anti Jamming | Standard |
Night Lights (Additional 04 headlights) | Standard |
Safety Sound Kit (Horn and Reverse Siren) | Standard |
Water Tank | Optional |
NR13 Certified Water Tank | Optional |
Nitrogen Charger | Optional |
rearview mirror | Optional |
Grinder | Optional |
Emergency Button (Installed on the Boom) | Optional |
ROPS and FOPS Approved Air Conditioning Cabin | Optional |
Radio inside the cabin | Optional |
Depth Gauge | Optional |
Access the Rops/Fops cabin test video:

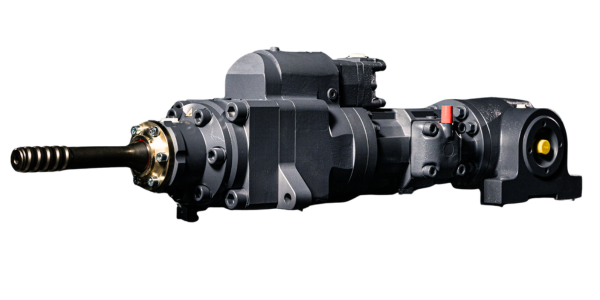

W25 Surface Hammer:
Technical Information | |
|---|---|
Working pressure | 170 bar (2.465 PSI) |
Impact power | 25 Kw (34 hp) |
Impact frequency | 2.600 bpm |
Weight | 237 kg |
Rotation torque | 750 Nm (533 lbf/ft) |
Thread Type | T45 |
Drilling diameter | 3” – 5” |
Magazine (number of rods) | Carrosel 6 + 1 |
Rod length | 3,66m (12”) |
Percussion | With Reverse System |
System | Dampening System |
The Dampening System is an impact absorption system designed to protect the Top Hammer and improve its durability and performance.
The FOX 12-30 ULTRA, equipped with the W25 hammer, delivers greater robustness, productivity, and reliability for intense operations.
Its benefits include:
Less hammer and rod wear.
Longer internal component life.
Greater operator comfort (less vibration in the cab and structure).
Dimensions:
Transport Dimensions | |
|---|---|
Weight | 13.000kg |
Width | 3.035 mm |
Length | 8.951mm |
Height | 3.752 mm |
